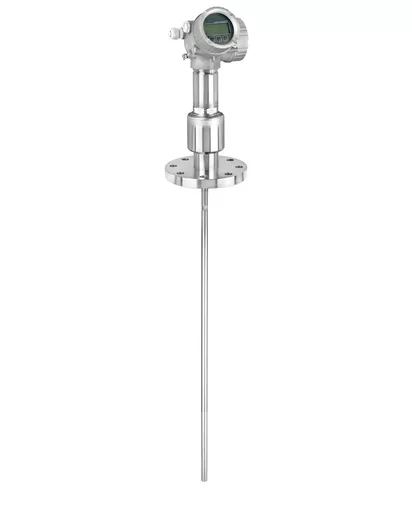

Guided radar measurement Time-of-Flight Levelflex FMP54 For high temperature and high pressure applications in the oil & gas, chemical and power industryLevelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam boilers and toxic media like ammonia. The gas tight feedthrough guarantees additional safety. Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases. Reliable measurement in case of moving surface and foam or in changing medias. Version with rod, rope or coax probe. • Process connections: Thread or flange • Temperature: -196 to +450°C (-320 to +842°F) • Pressure: -1 to +400bar (-14.5 to +5,800psi) • Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft) • Accuracy: rod ±2mm (0.08") • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, steam boiler approval, 5-point linearity protocol צור איתנו קשר לגבי מוצר זה שם דוא"ל טלפון תוכן הפנייה
